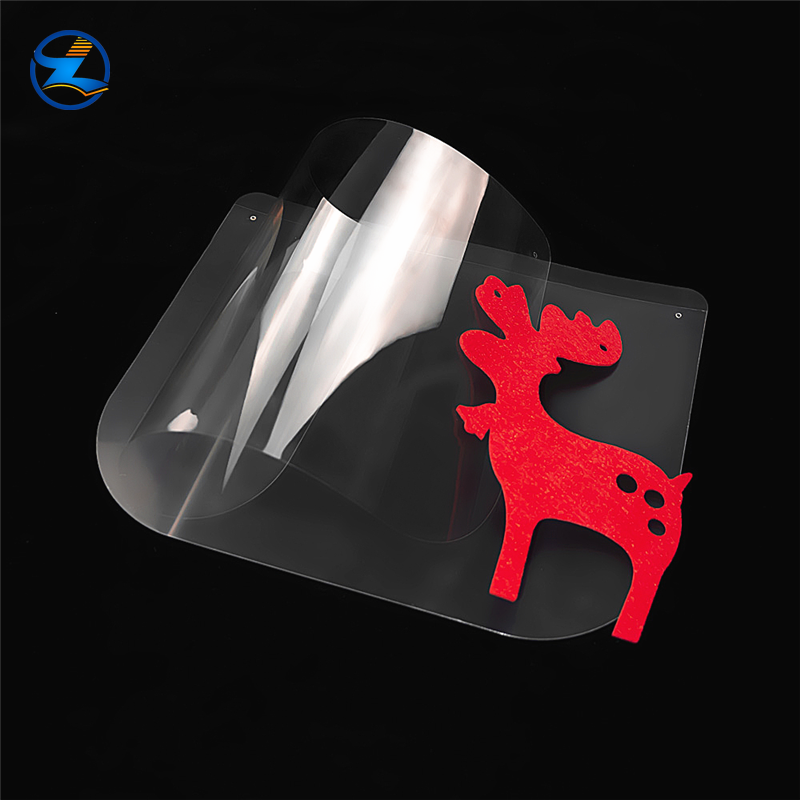

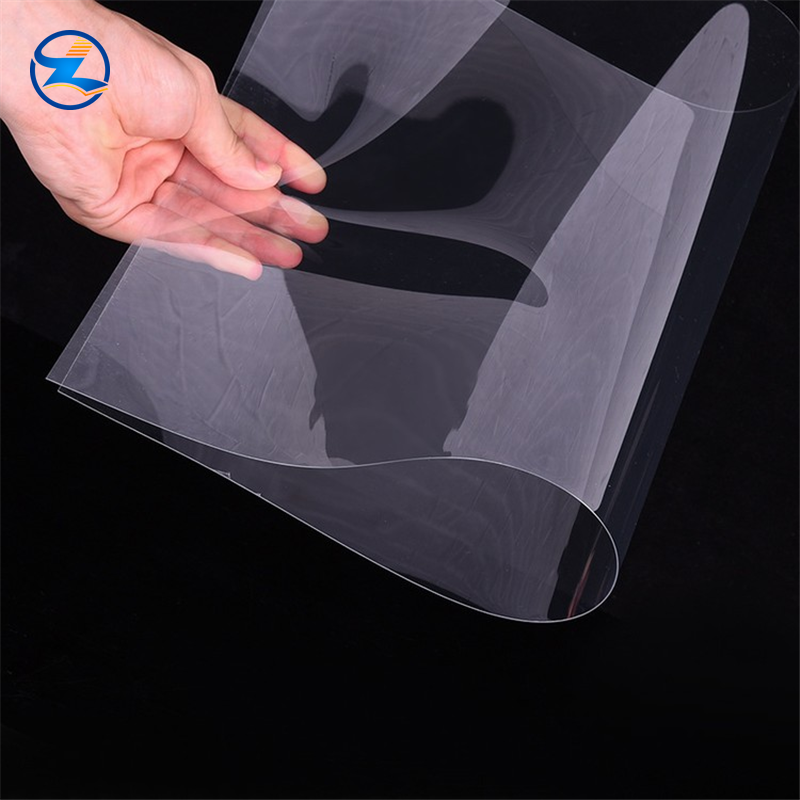

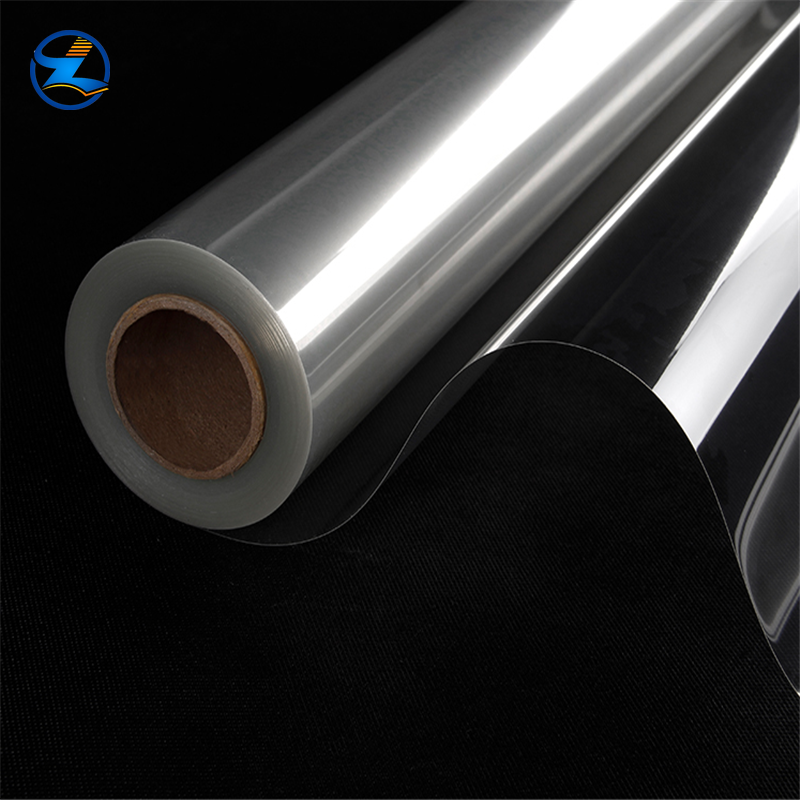

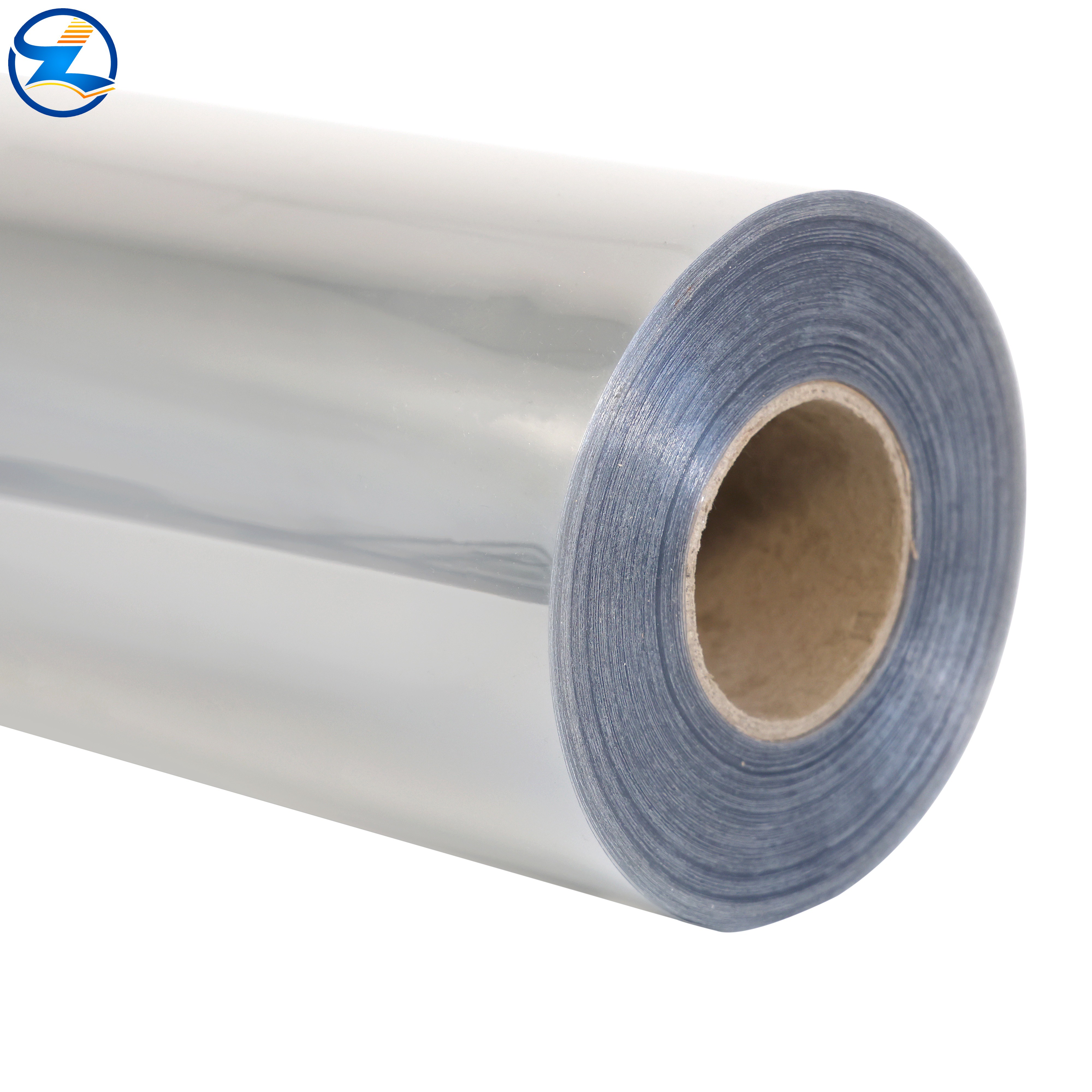

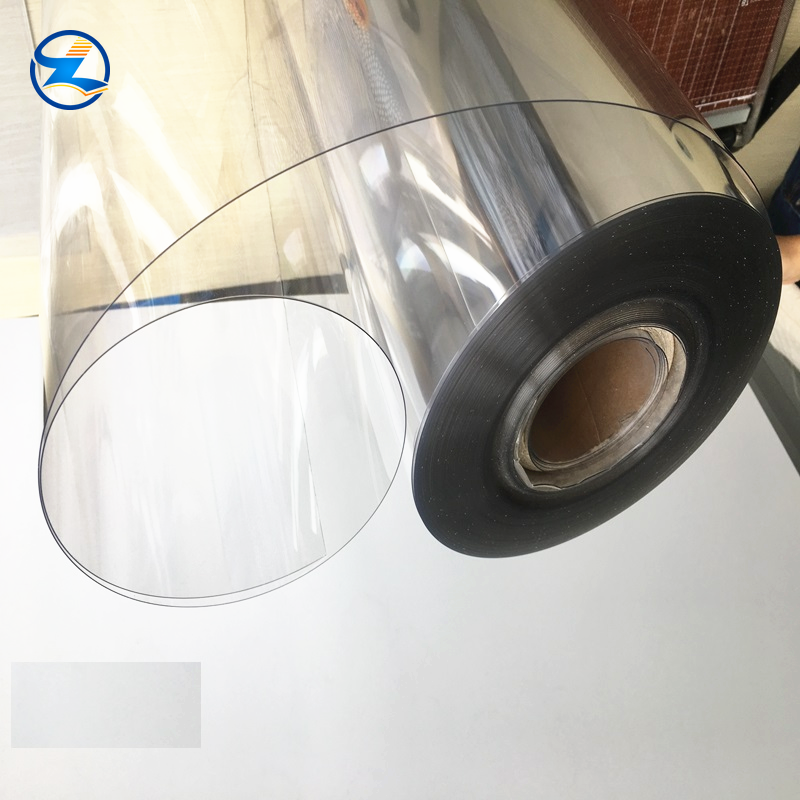

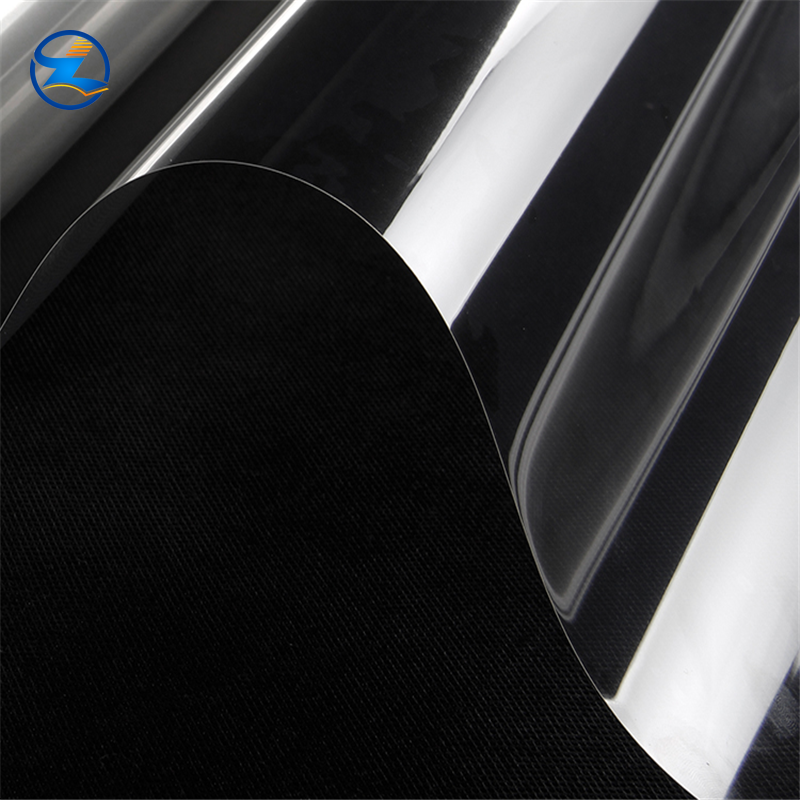

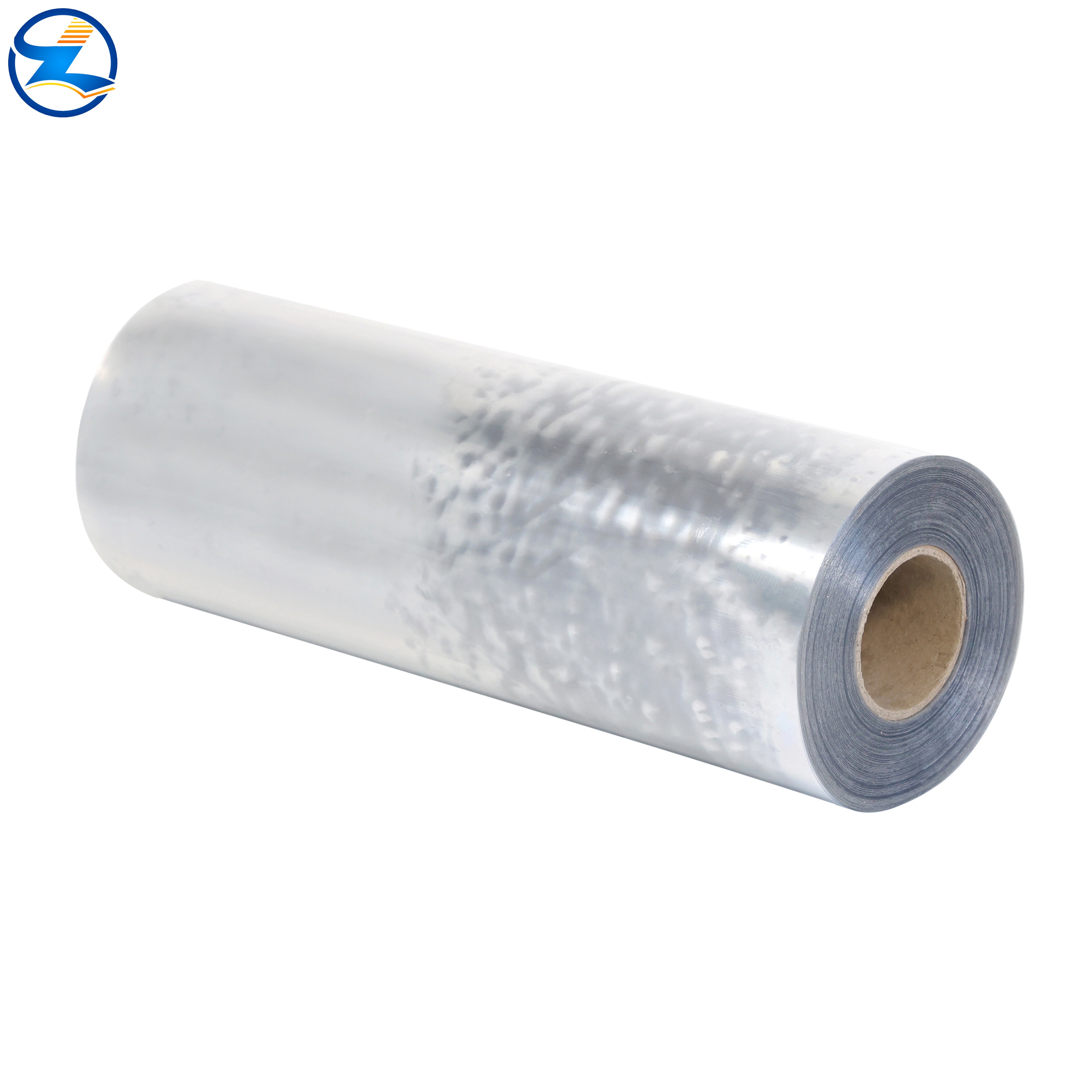

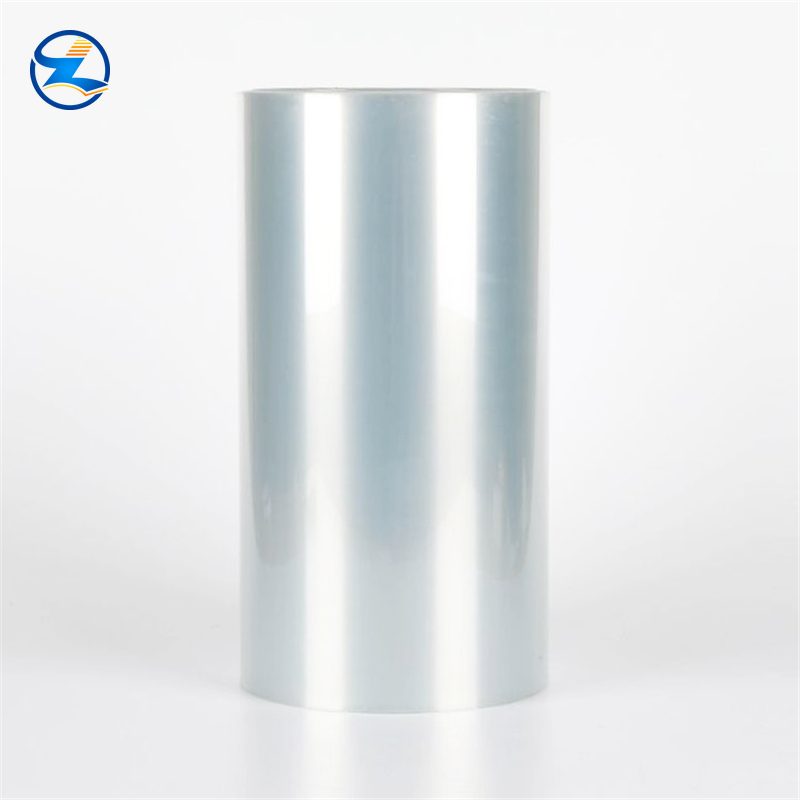

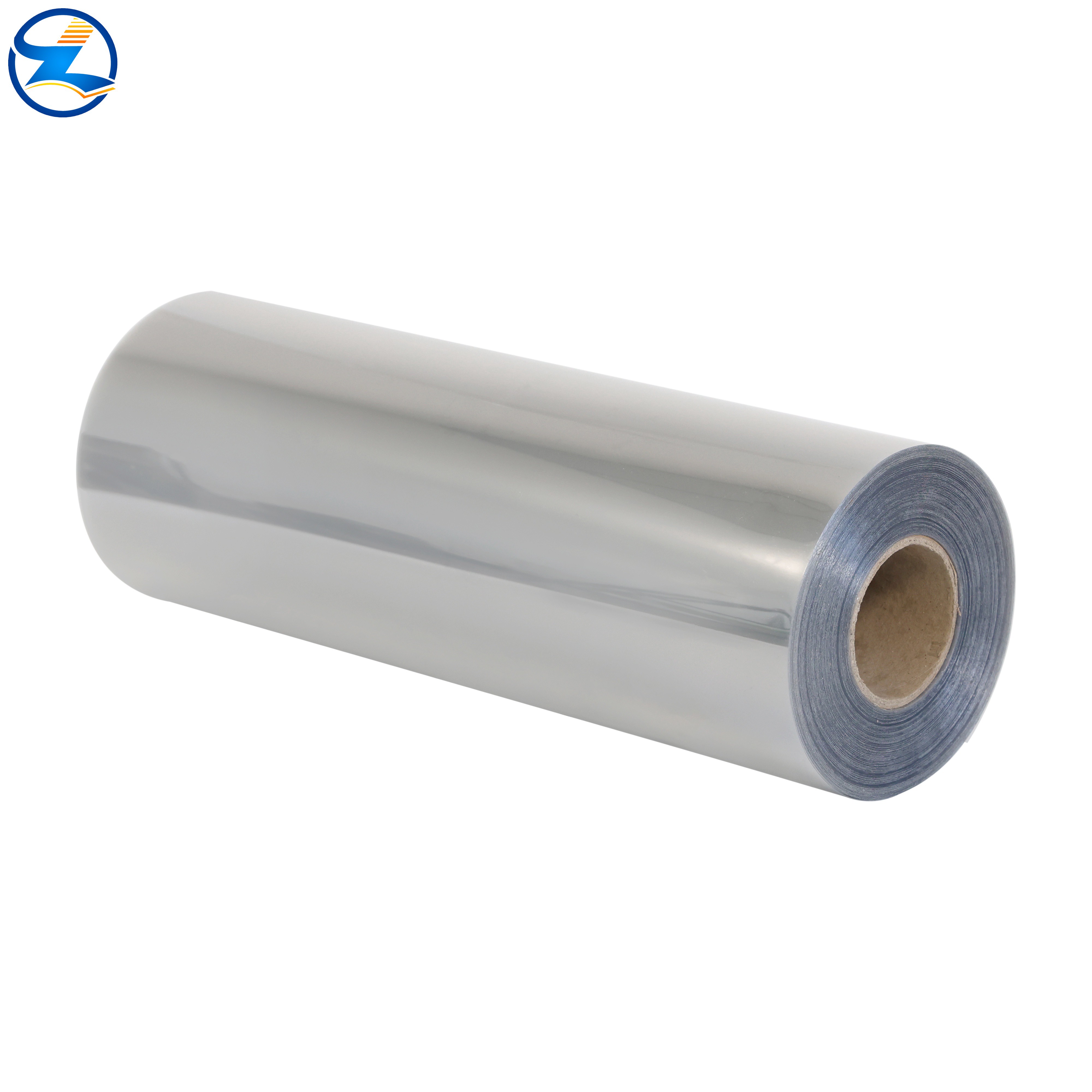

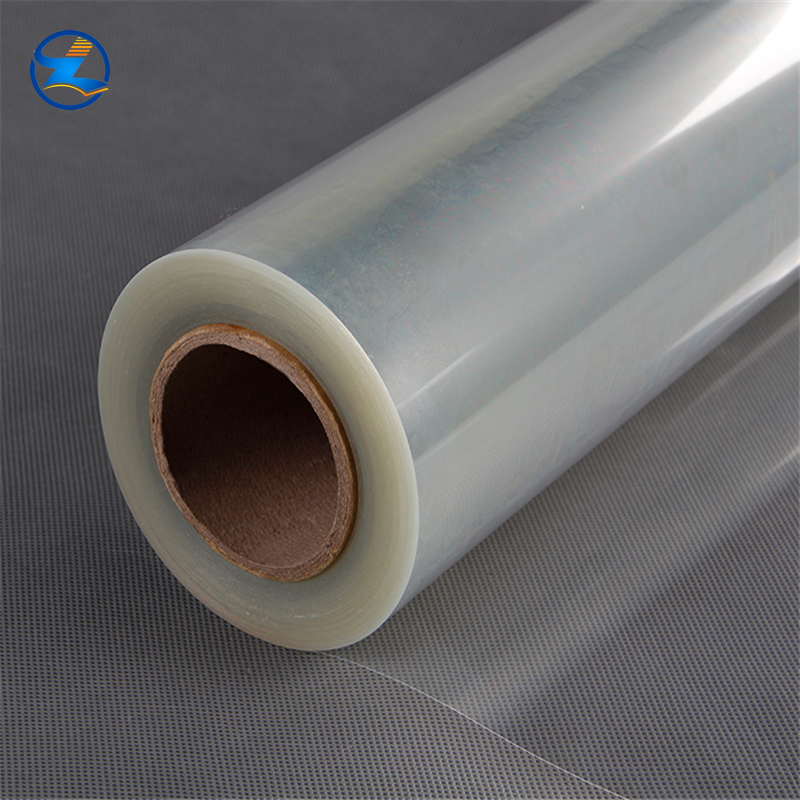

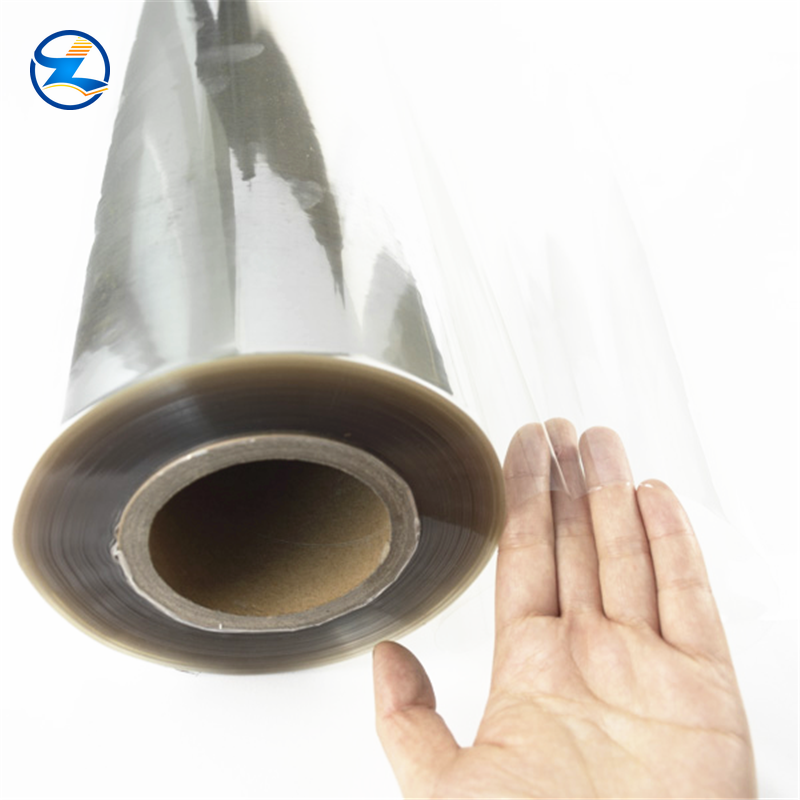

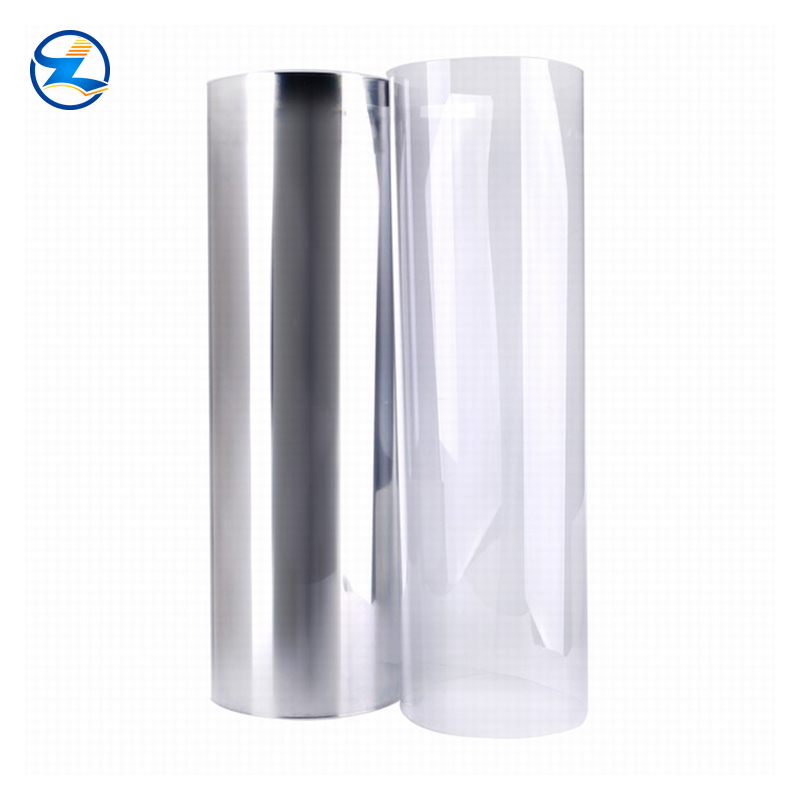

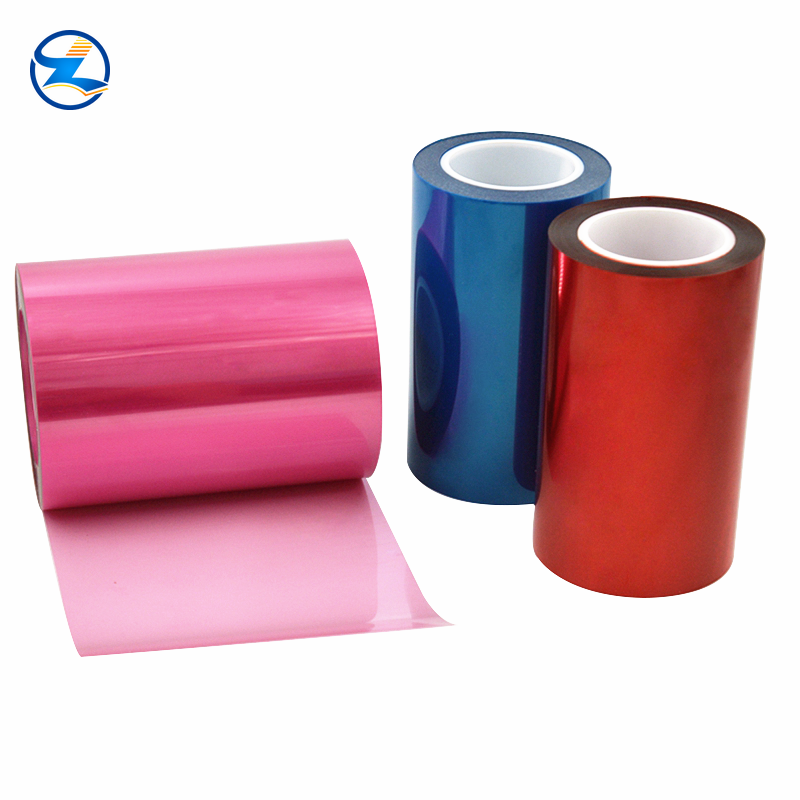

PET Vacuum Forming sheet

WhatsApp: +86 15065872595

Email: sale@sdzlplastic.com

Product Description

PET sheet is a thermoplastic sheet made by Polyethylene terephthalate resin.PET offers the capability to produce complex shapes, precise details, deep draws and compound curves without worrying about durability. PET is easily formed, die-cut and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PET has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs.

•Outstanding thermoforming characteristics, particularly in deep draw applications

•Good impact resistance
•Less brittle than acrylic
•Resistant to common cleaners used on point of purchase displays
•Allows for rigid thermoforming cycle times
•FDA compliant grades available
•Impact strength greater than acrylic and approaches polycarbonate
•86% light transparency compared to 87% for polycarbonate and 92% for acrylic
•Die cuts/punches easily
•Low forming temperature
•Printable
•Chemical resistant
•Self-extinguishing

Technical Data Sheet

Item	Typical Value	Testing Method
Intrinsic Viscosity (dL/g)	0.750+/-0.015	Ubbelodhe viscometer
Specific Gravity (kg/cm³)	1.27	ASTM D792
Moisture Absorption (%)	0.15	ASTM D570
Tensile Strength@Yield 50mm/min( inch/min) (kgf/cm²)	496	ASTM D638
Tensile Strength@Break 50mm/min( inch/min) (kgf/cm²)	281	ASTM D638
Elongation@Yield 50mm/min( 2inch/min) (%)	3.7	ASTM D638
Elongation@Break 50mm/min(2 inch/min) (%)	136	ASTM D638
Flexural Strength 1.27mm/min(2 inch/min) (kgf/cm²)	620	ASTM D790
Flexural Strength 1.27mm/min(3 inch/min) (kgf/cm²)	20800	ASTM D790
Low temperature falling dart impact (g)	791	ASTM D358
Atmospheric temperature falling dart (g)	1701	ASTM D358
Lzod Impact Strength Notched@23 ℃ (J/m)	98	ASTM D256
Rockwell Hardness (℃)	106	R-scale
Heat Distortion Temperature 0.45Mpa(66 psi) (℃)	77	ASTM D648

Application For PETG Sheet

PET sheet are widely used for packaging consumer goods, electrical Accessories, and medical products. In packaging applications, PET sheet act as Excellent barriers to acids and strong oxidizers.

Application

-Packaging

-Folding box

-Vacuum therm-forming

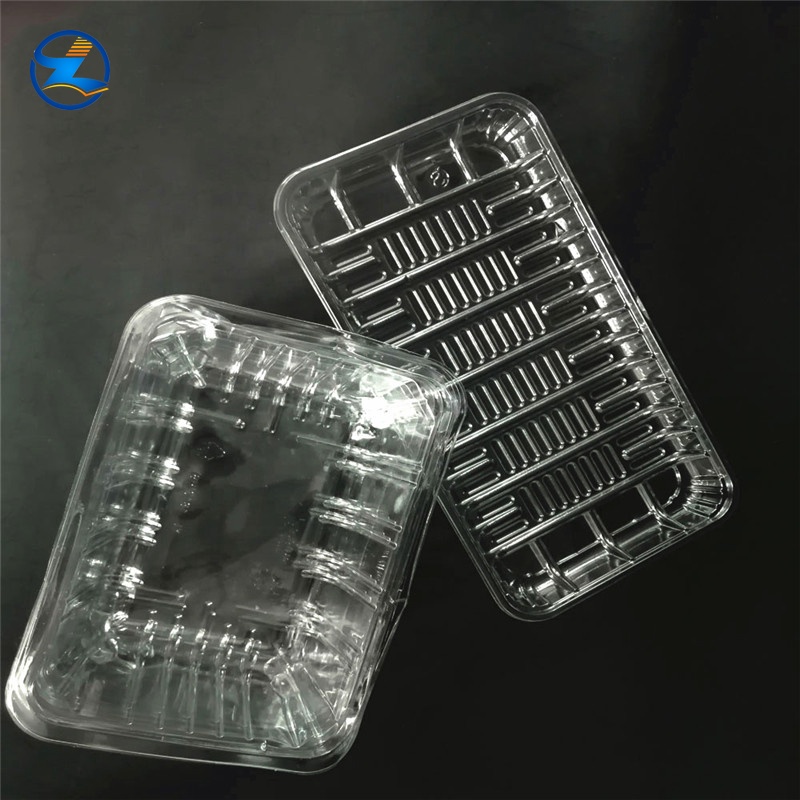

-Blister Pack
