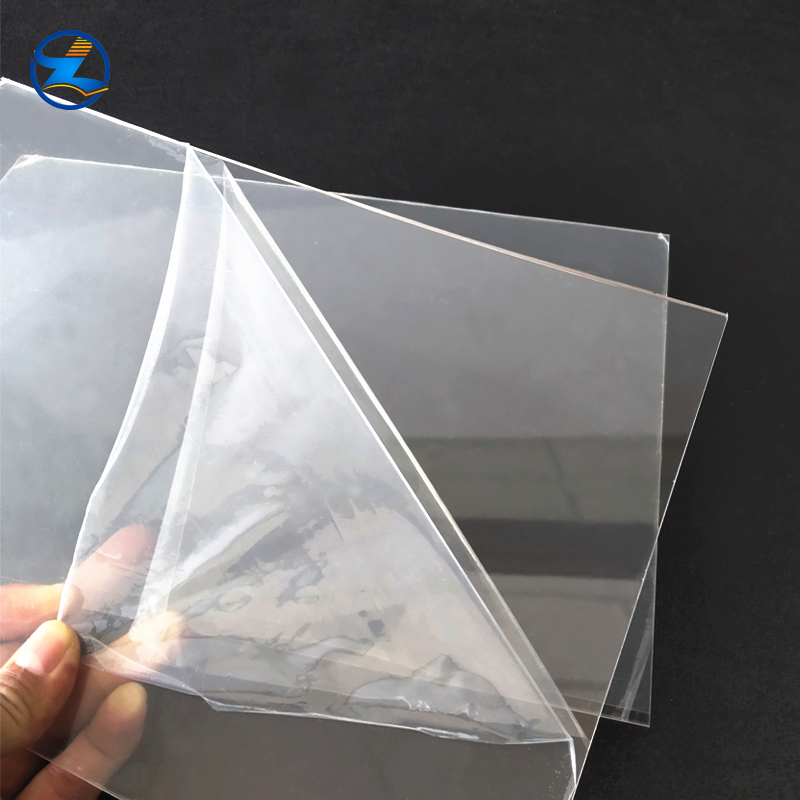

High Clarity PET Film Roll, High Barrier Moisture-Proof Polyethylene Terephthalate Film
WhatsApp: +86 15065872595
Email: sale@sdzlplastic.com
Product Description

Key Specifications

ItemSpecification
Material100% Virgin Polyethylene Terephthalate (PET) Resin (biaxially oriented, single-layer)
Thickness12μm - 100μm (customizable according to customer requirements)
Width500mm - 1600mm (max width up to 1600mm; slit rolls available; core size: 3″/76mm or 6″/152mm, customizable)
Length1000m - 5000m per roll (customizable based on order quantity and packaging needs)
ColorTransparent (standard), matte, white, black, or custom colors (matching RAL/Pantone color card)
Surface TreatmentOptional corona treatment (dyne level ≥40 dynes) for better printability and adhesion; anti-scratch, anti-fog, anti-static treatments available
Heat ResistanceContinuous working temperature: -40℃ to 120℃; short-term heat resistance up to 150℃
Heat SealabilityHeat seal layer available (optional), heat seal temperature: 160-200℃; strong seal strength, no leakage
Tensile Strength (MD/TD)≥250MPa / ≥280MPa
Elongation at Break (MD/TD)≥100% / ≥120%
Light Transmittance (transparent type)≥93%
Haze (transparent type)≤1.0%
Barrier PerformanceOxygen Transmission Rate (OTR): ≤5cc/(m²·24h·atm) (23℃, 50% RH); Moisture Vapor Transmission Rate (MVTR): ≤3g/(m²·24h) (23℃, 85% RH)
CertificationFDA (21 CFR 177.1310), RoHS, REACH, ISO9001
Density1.38g/cm³

Key Features

  1. High Transparency & Gloss: Exceptional light transmittance (≥93%) and glossy surface, ensuring clear display of product appearance, ideal for high-end packaging and lamination applications.
  2. Superior Barrier Performance: Excellent resistance to moisture, oxygen, and oil, effectively extending the shelf life of packaged products, especially suitable for food, pharmaceutical, and electronic products.
  3. High Mechanical Strength: High tensile strength and good toughness, resistant to tearing, puncturing, and stretching, suitable for automatic packaging lines and long-distance transportation.
  4. Food-Grade Safety: Made of 100% virgin PET resin, non-toxic, odorless, BPA-free, compliant with international food contact standards, safe for direct contact with food and pharmaceuticals.
  5. Versatile Surface Treatments: Optional corona treatment enhances printability and adhesion, compatible with various printing methods (offset, digital, UV printing); anti-scratch, anti-fog, and anti-static treatments meet different application needs.
  6. Excellent Heat Resistance: Can withstand high and low temperatures, stable performance in harsh environments, suitable for packaging products that require sterilization or cold storage.
  7. Eco-Friendly & Recyclable: Fully recyclable (recycling code 1), meets global environmental protection requirements, conforms to export environmental standards of various countries.

Applications

  • Food Packaging: High-end snack packaging, candy wrappers, bakery packaging, frozen food packaging, beverage labels, edible oil packaging (high barrier against oil and moisture).
  • Electronic Packaging: Electronic component packaging, chip packaging, battery packaging (anti-static, moisture-proof, high temperature resistant).
  • Lamination Applications: Paper lamination, plastic product lamination, poster lamination, book cover lamination (enhancing gloss and durability).
  • Pharmaceutical Packaging: Medicine blister packaging, drug outer packaging (barrier against moisture and oxygen, ensuring drug stability).
  • Other Applications: Label printing, decorative films, protective films for electronic products, solar panel films, textile packaging.

Packaging & Shipping

  • 1.Packaging: Each roll wrapped with PE film + kraft paper for dust and moisture protection; wooden or plastic core; outer packed in export-grade corrugated cartons or wooden pallets (for large rolls and bulk orders).
  • 2.Shipping: Support sea freight (20ft/40ft containers, cost-effective for bulk orders), air freight (for urgent small orders, 3-7 days), and express delivery (DHL/FedEx/UPS for samples and small batches, door-to-door service).
  • 3.Trade Terms: FOB, CIF, CFR, EXW supported.
  • 4.Port of Loading: Qingdao Port, Shanghai Port, Ningbo Port (China).
  • 5.Delivery Time: Samples (3-5 days after sample request), bulk orders (15-25 days after deposit confirmation).
  • 6.Handling Precautions: Avoid heavy pressure, sharp objects, direct sunlight, and rain during transit; store in a dry, cool, ventilated warehouse (temperature 15-30℃, humidity ≤60%).
