PHARMACEUTICAL PVC PVDC FILM

Pharmaceutical blister PVC & PVDC film is with good shaping and barrier effect to protect the medicine inside for storage. The opaque and transparent color options enrishes the choices of customers for different needs of pvc and pvdc rigid film. As a manufacturer, we can customize the size and thickness for clients.

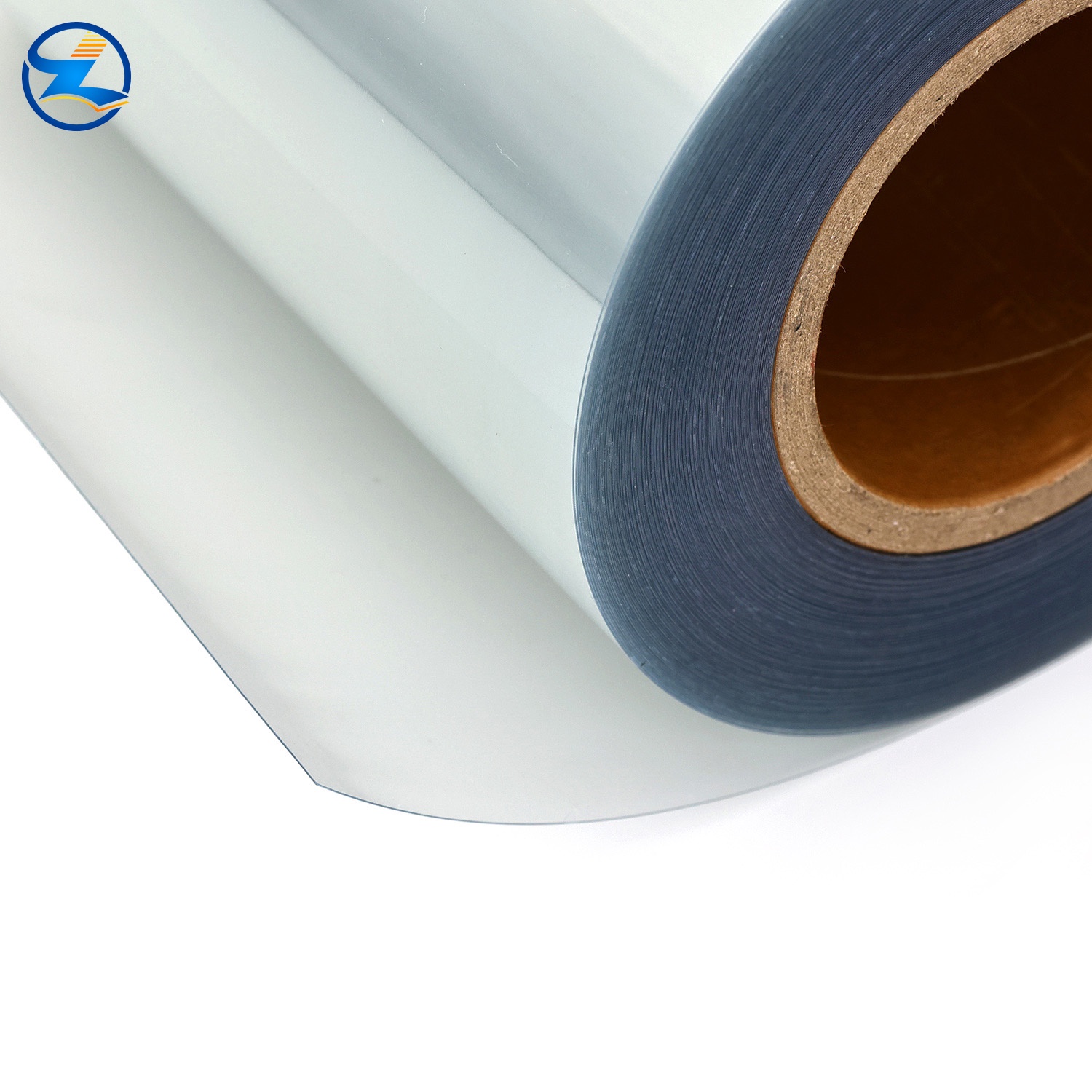

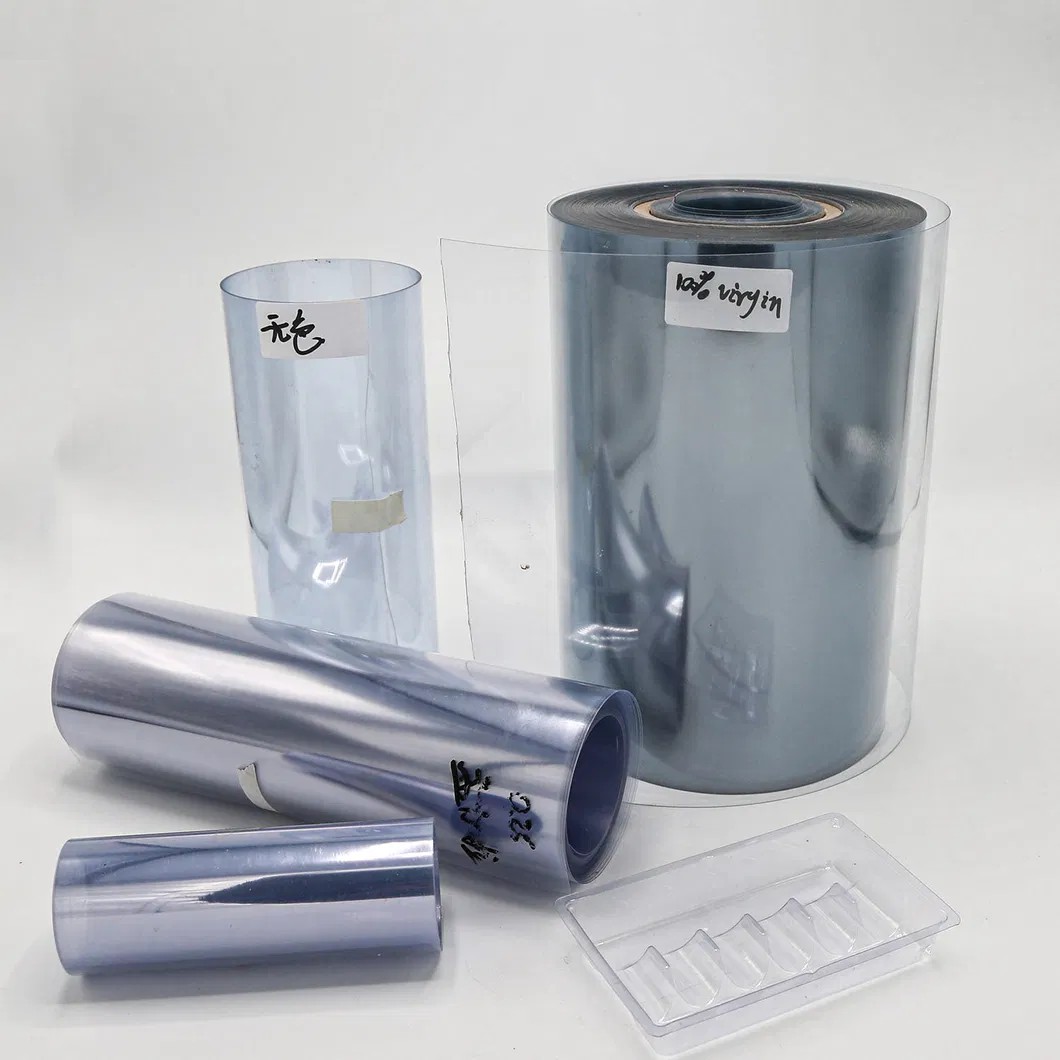

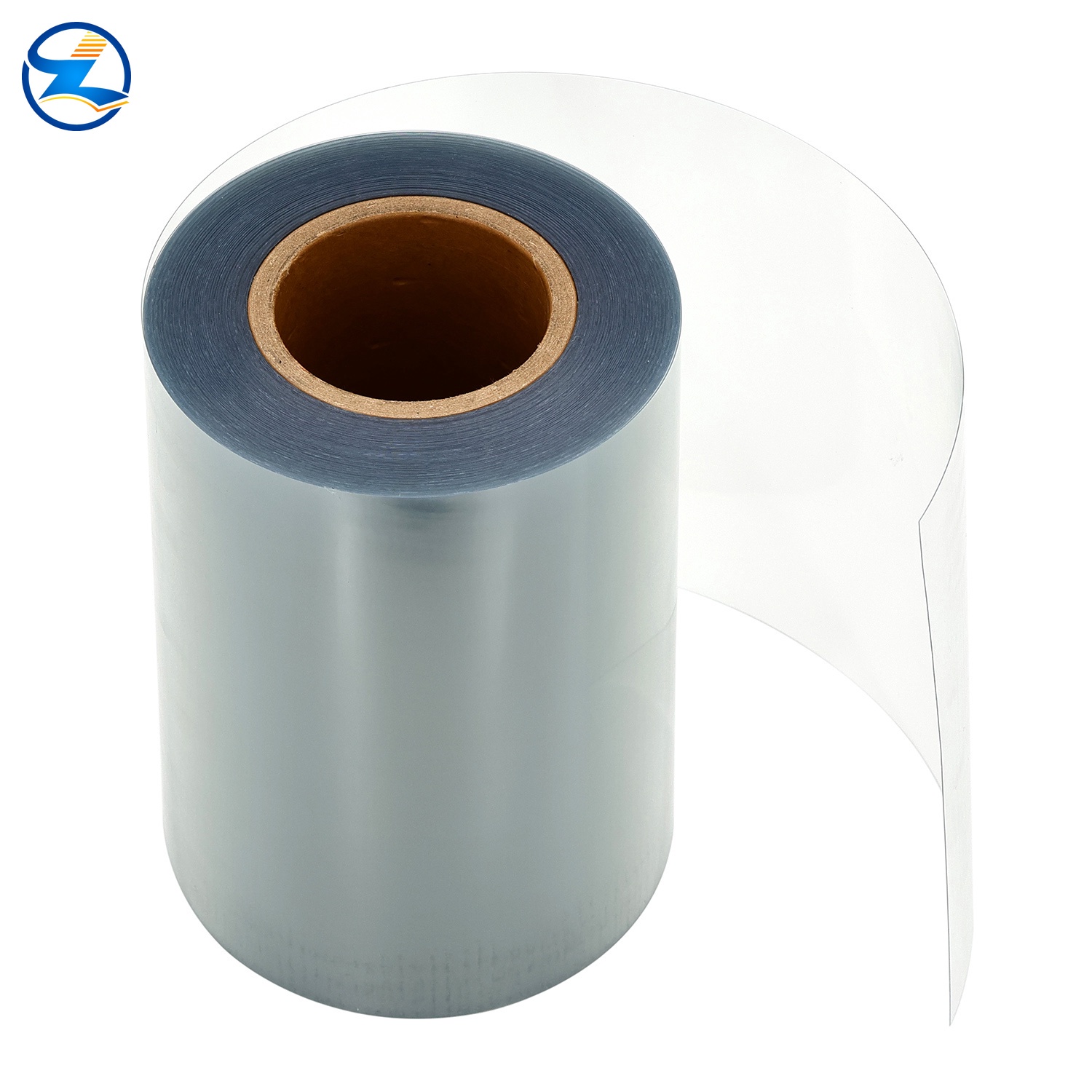

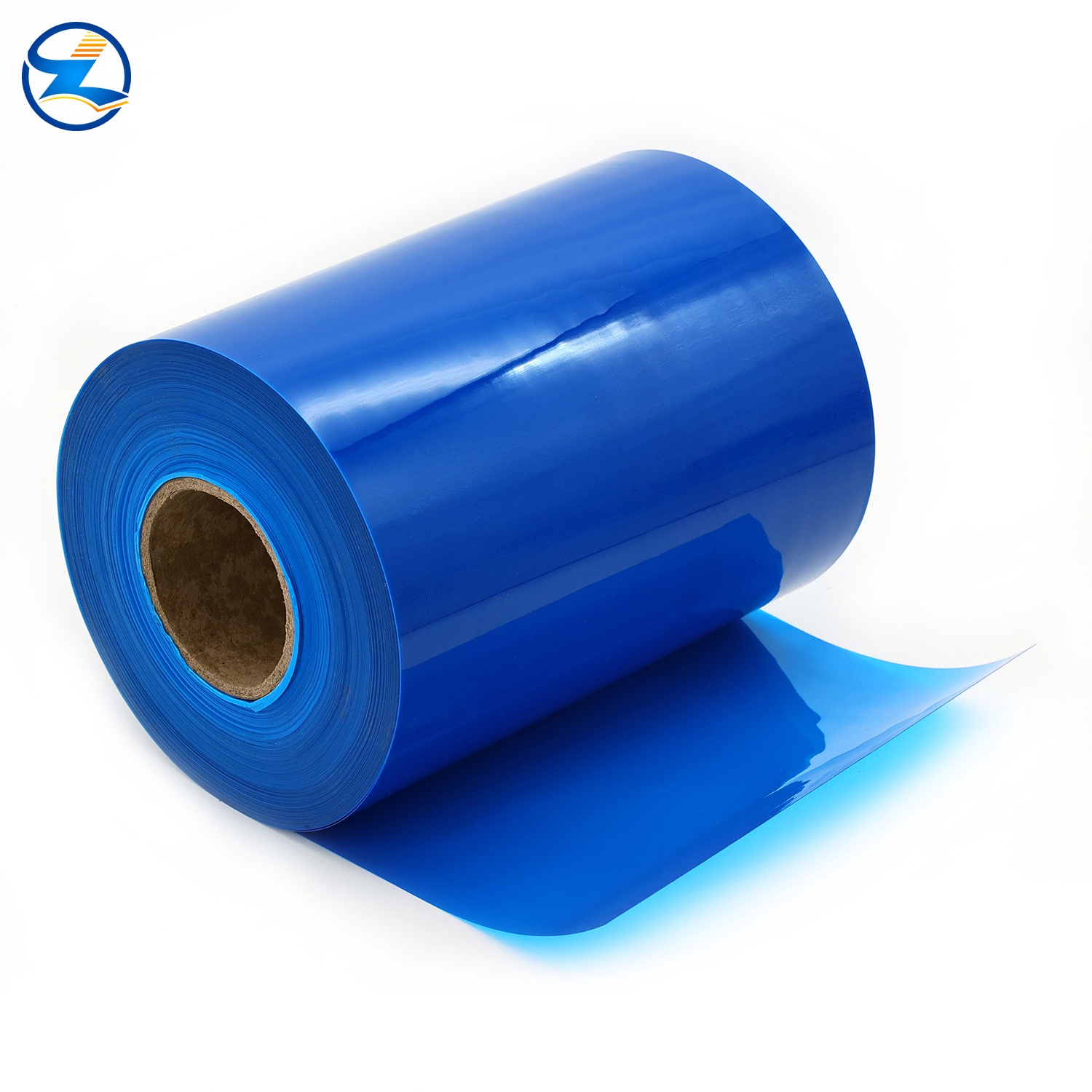

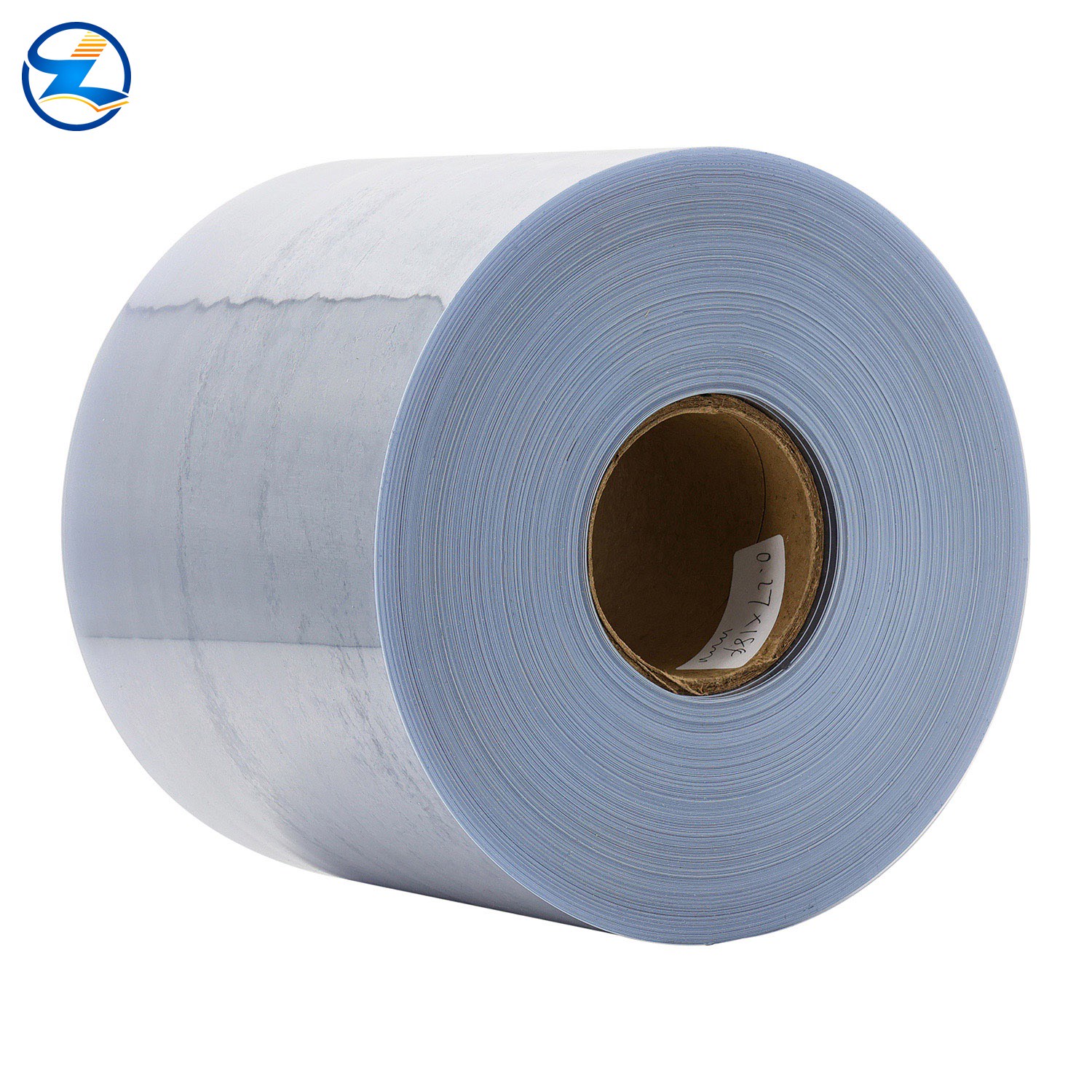

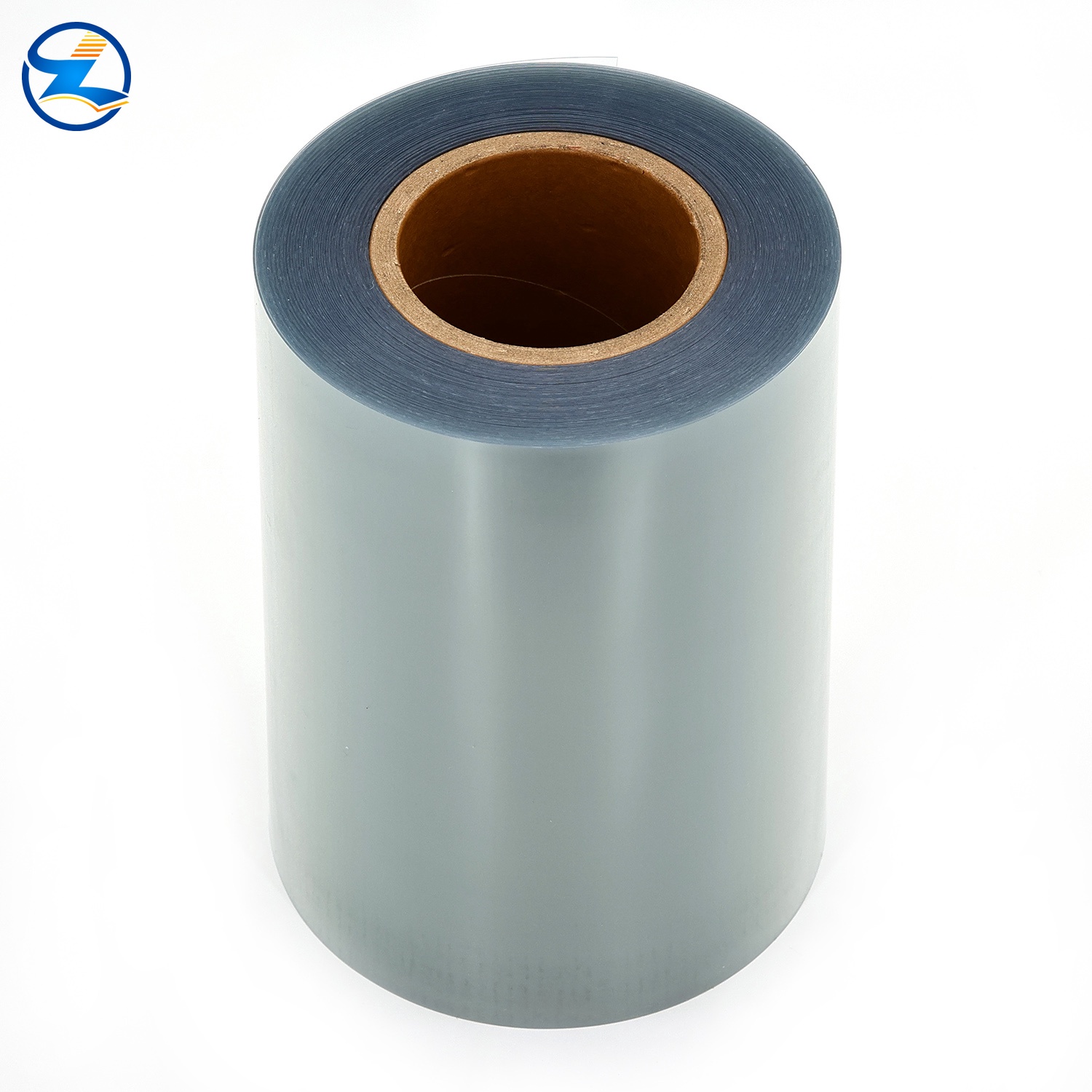

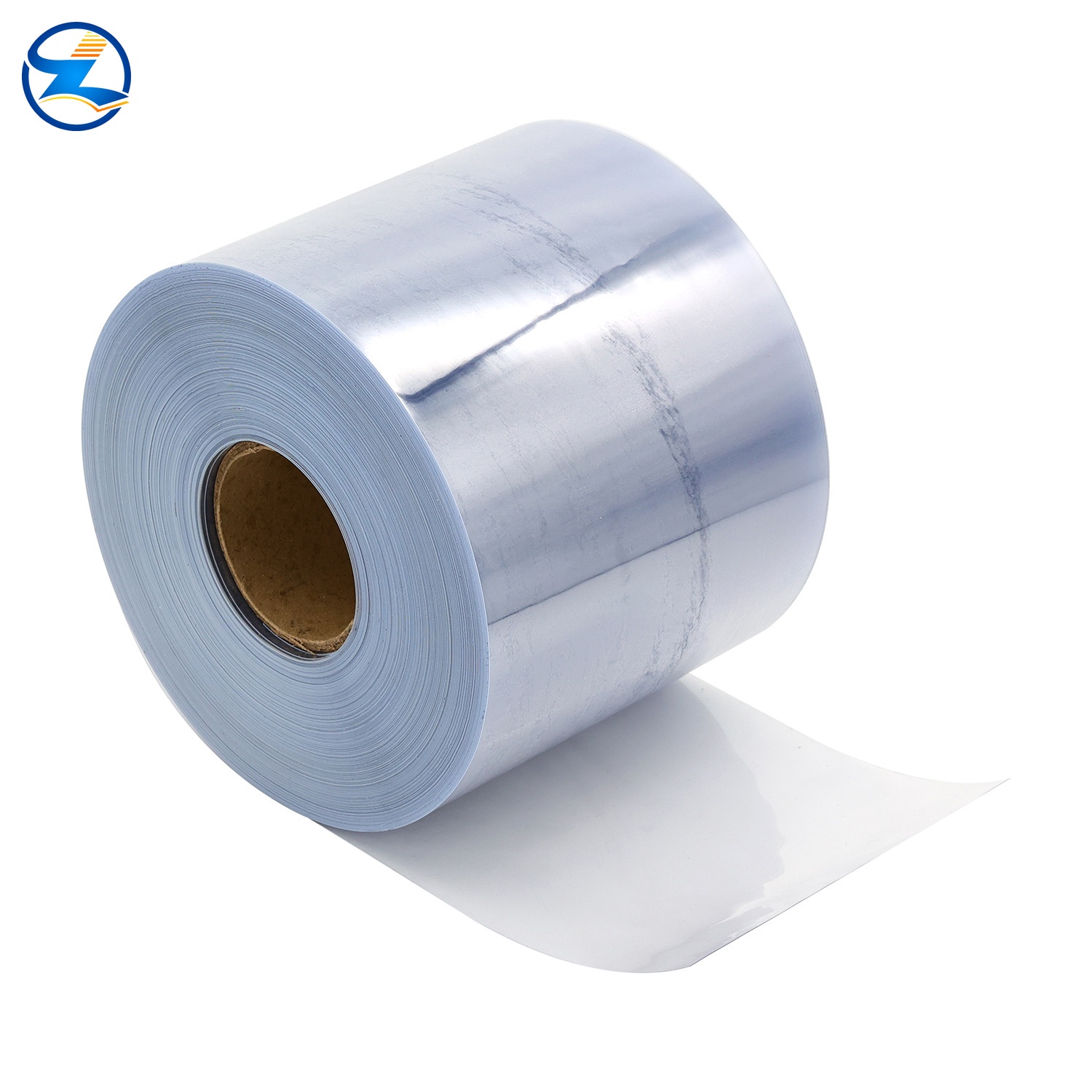

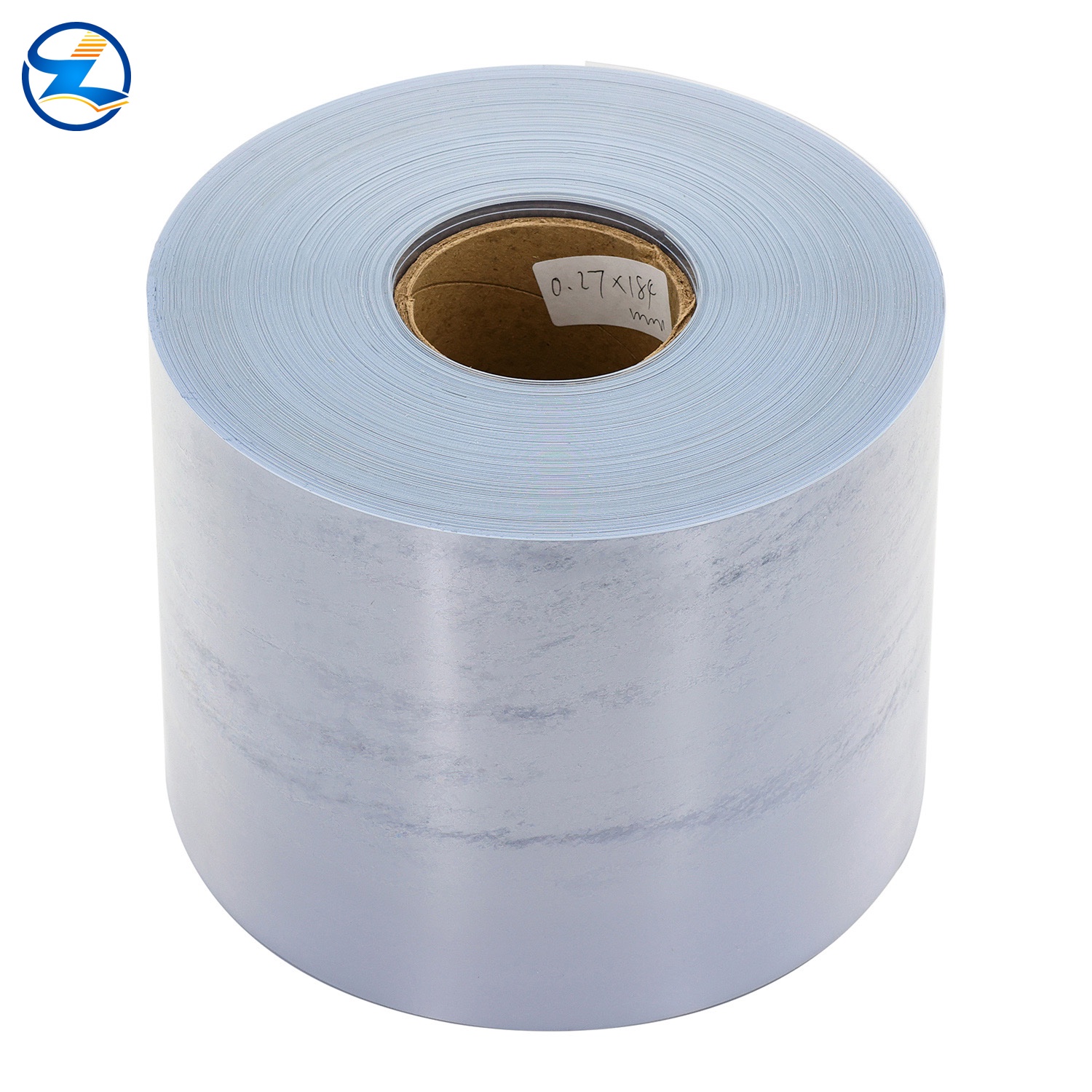

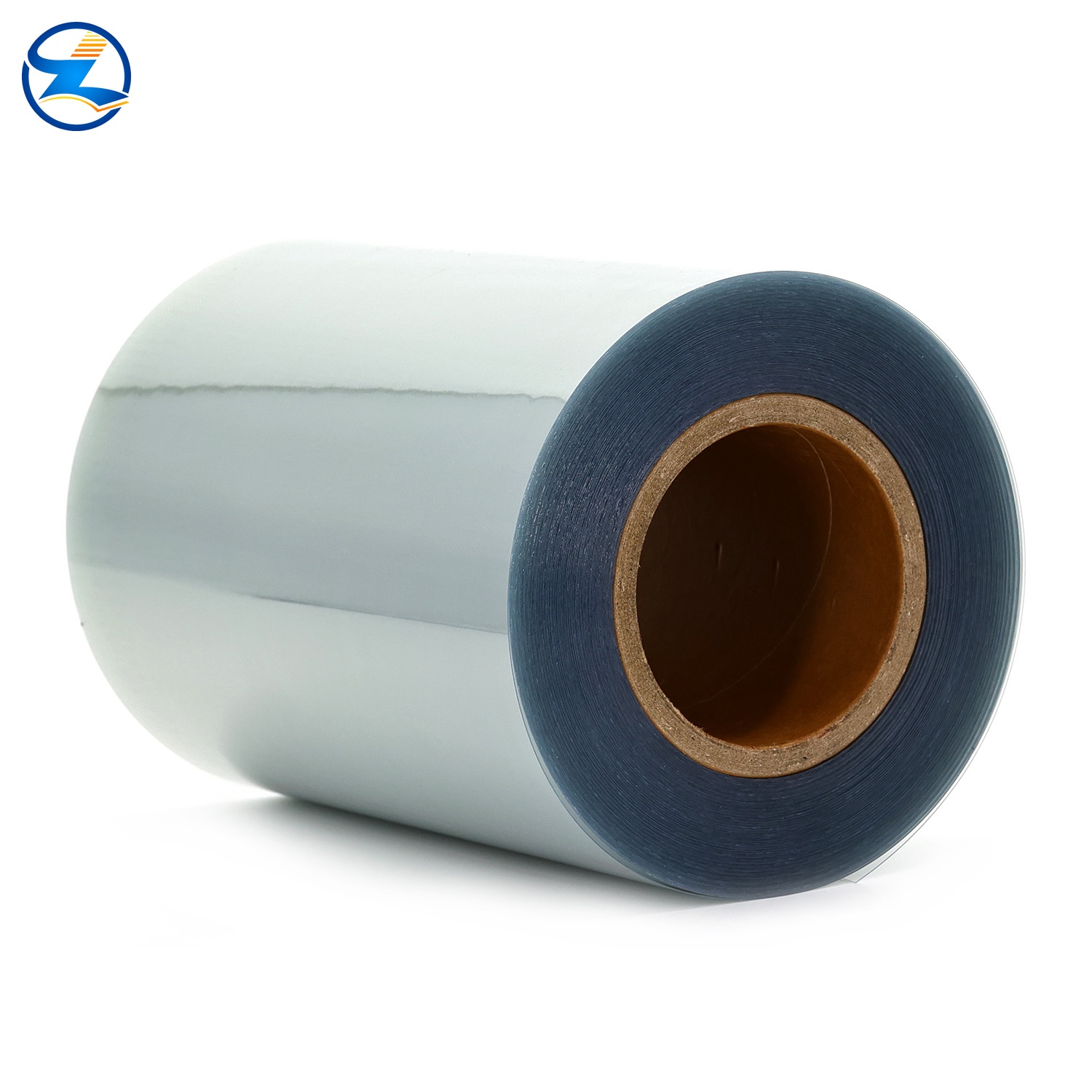

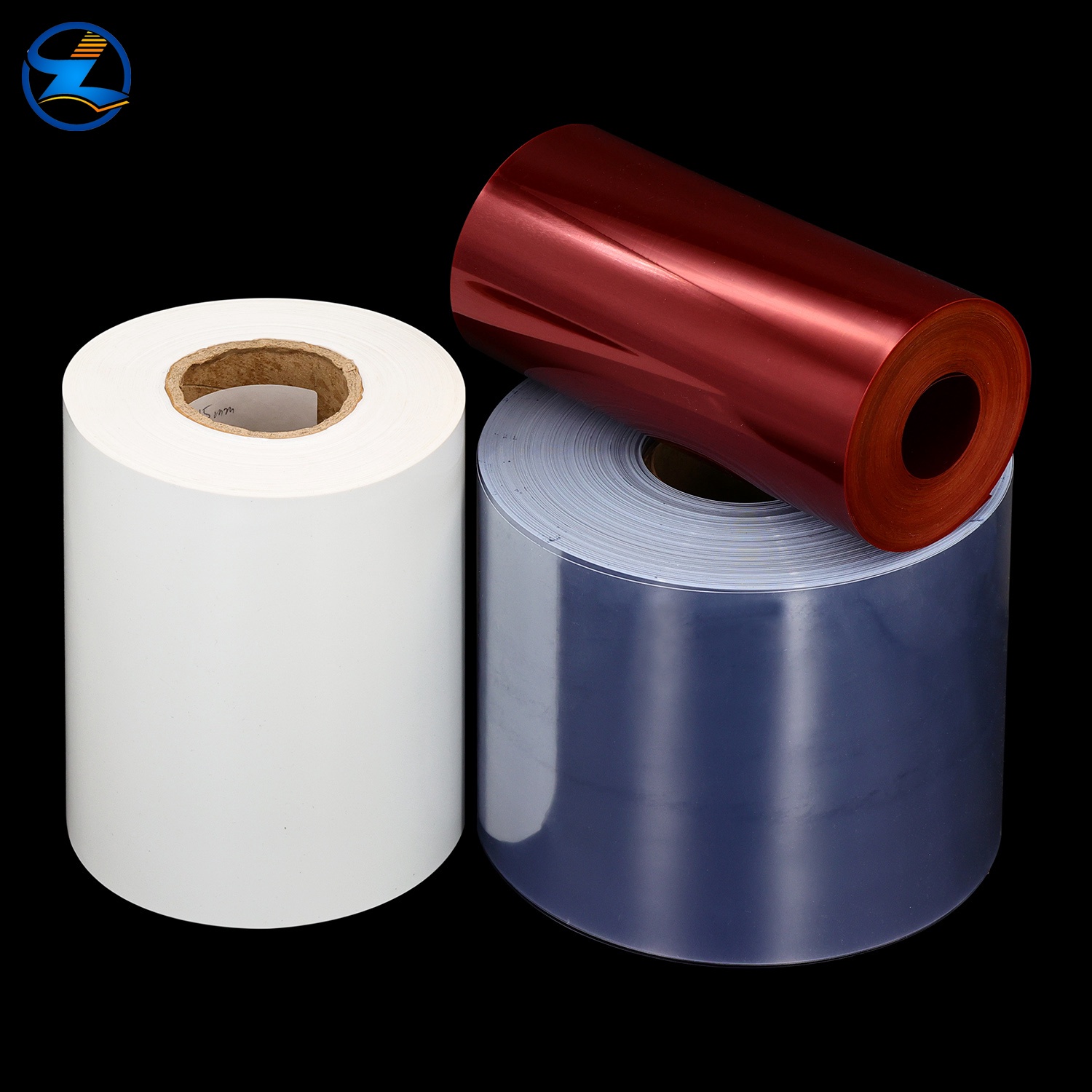

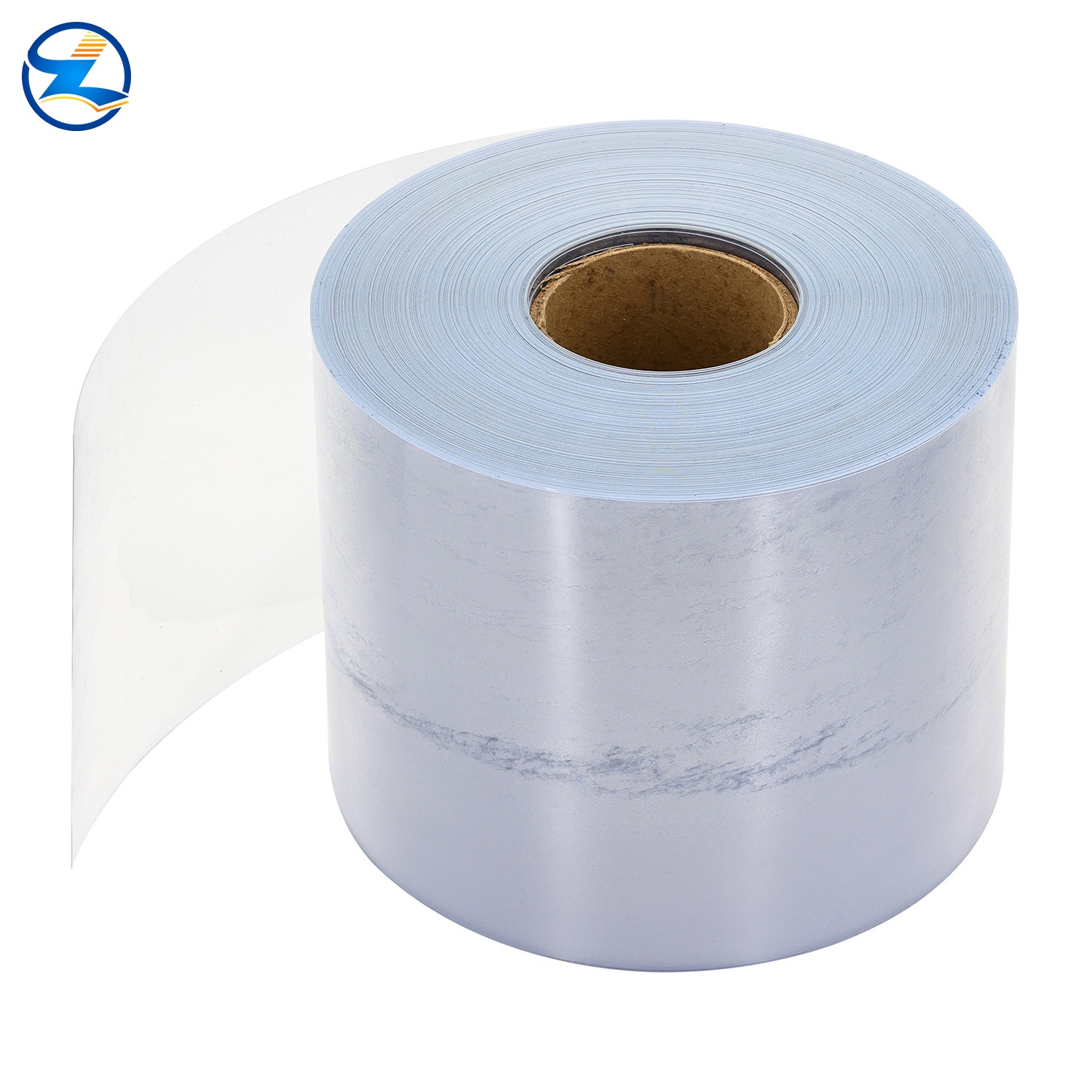

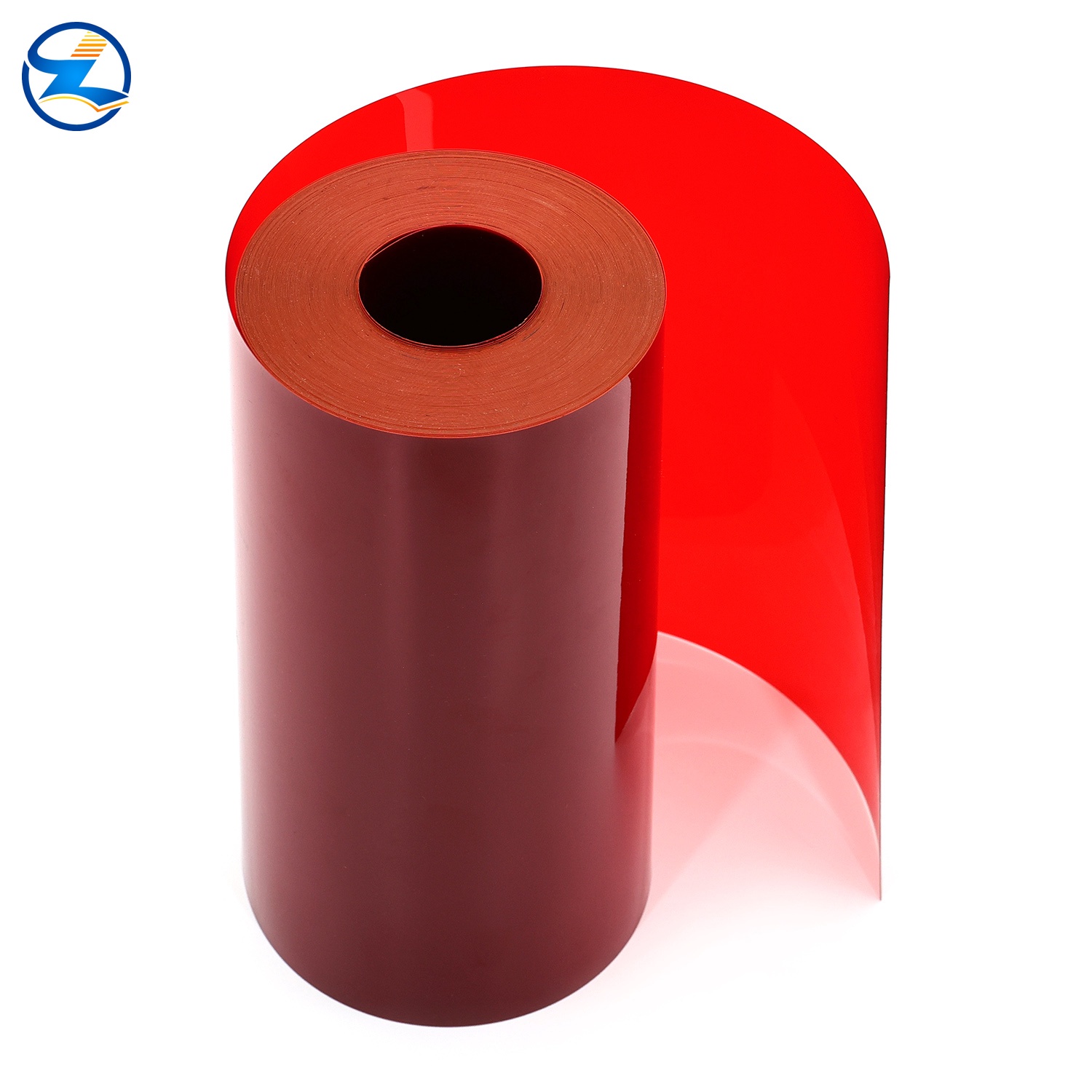

JEREL Pharmaceutical customized colored blister packaging roll typed PVC PVDC rigid film.

PRODUCT INFORMATION
Product Name PVC/PVDC sheet
Performance Rigid Film
Width Maximum 1.2 meters transparent and 750mm colored
Thickness 250/25g, 250/40g, 250/60g, 250/90g
ID 76mm(3 inches)
ED 300mm
Length 200m/roll(thickness 250mic)
Density 1.37g/cm3
Packing double black PE bages/plastic plug/carton/pallet
A container of 20 feet does not require 26 tons of pallets, and 20 tons of pallets are used. The weight limit of 25 tons for a

40-foot container is not economical.

PVC PVDC SPECIFICATION

- PVC film

- PVC/PVDC40GSM

- PVC/PVDC60GSM

- PVC/PVDC90GSM

- PVC/PE/PVDC90GSM

- PVC/PE/PVDC120GSM

- PVC/PE/PVDC180GSM

ADVANTAGE OF PVC/PVDC FILM FOR PHARMACEUTICAL PACKING

Advantages: good sealing, high barrier, good molding effect, see-through

Water vapor transmission rate:
PVDC25GSM is less than 0.75g/m2.24H,
PVDC40GSM is less than 0.6g/m2.24H,
PVDC60GSM is less than 0.4g/m2.24H,
PVDC90GSM is less than 0.3g/m2.24H

Gas permeability:
PVDC25GSM is less than 0.6g/m2.24H,
PVDC40GSM is less than 0.4g/m2.24H,
PVDC60GSM is less than 0.3g/m2.24H,
PVDC90GSM is less than 0.2/m2.24H

PRODUCT FEATURES
Multi-layer blister films based on PVC are often used for pharmaceutical blister packaging, whereby the PVC serves as the
thermoformable backbone of the structure. PVC layer can be colored with pigments and/or UV filters. Polyvinylidene chloride (PVDC)-coated PVC
